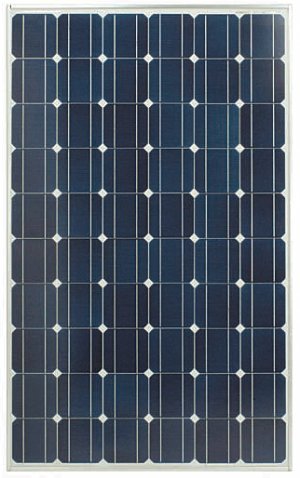

The Sharp NU-U235F1 235-watt solar panel is made from monocrystalline silicon. With a maximum load of 50 pounds per square foot and a superior power tolerance, this panel is definitely a sturdy, quality panel. Manufactured in Memphis, this Sharp solar panel is designed for commercial, residential grid-tie roof systems or for arrays mounted on the ground. It comes with 25-year limited warranty and are UL listed.
The technology used in the Sharp NU-U235F1 235 watt solar panel is based on 50 years of research. Sharp's proprietary innovation in surface texturing maximizes the light absorption of a solar panel, yielding a higher efficiency rating. (An efficiency rating is the percentage of sunlight that is converted from a module into energy to maximize your savings.)
235 watt
NU-U235F2
NEC 2008 Compliant
module output cables: 12 AWG PV Wire
ELECTRICAL CHARACTERISTICS
Maximum Power (Pmax)* 235 W
Tolerance of Pmax +10%/-5%
Type of Cell Monocrystalline silicon
Cell Configuration 60 in series
Open Circuit Voltage (Voc) 37.0 V
Maximum Power Voltage (Vpm) 30.0 V
Short Circuit Current (Isc) 8.60 A
Maximum Power Current (Ipm) 7.84 A
Module Efficiency (%) 14.4%
Maximum System (DC) Voltage 600 V
Series Fuse Rating 15 A
NOCT 47.5°C
Temperature Coefficient (Pmax) -0.485%/°C
Temperature Coefficient (Voc) -0.351%/°C
Temperature Coefficient (lsc) 0.053%/°C
*Illumination of 1 kW/m2 (1 sun) at spectral distribution of AM 1.5 (ASTM E892
global spectral irradiance) at a cell temperature of 25°C.
MECHANICAL CHARACTERISTICS
Dimensions (A x B x C below) 39.1” x 64.6” x 1.8”/994 x 1640 x 46 mm
Cable Length (G) 43.3”/1100 mm
Output Interconnect Cable** 12 AWG with MC4 Locking Connector
Weight 41.9 lbs / 19.0 kg
Max Load 50 psf (2400 Pascals)
Operating Temperature (cell) -40 to 194°F / -40 to 90°C
**A safety lock clip (Multi Contact part number PV-SSH4) may be required in
readily accessible locations per NEC 2008 690.33 (C)
**PV Wire per UL Subject 4703
